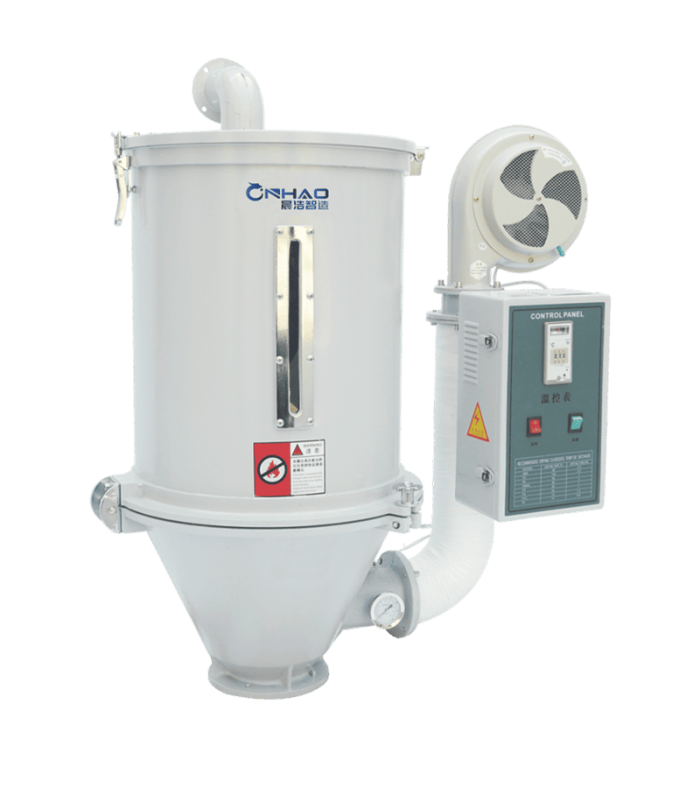

Standard Hopper Dryer
Standard Hopper Dryer
• Efficient Drying: Mainly used for plastic pellet drying. Processes various moist raw materials with high-temperature hot air to ensure thorough drying and consistent product quality.
• Flexible Capacity: Loading capacities ranging from 6 to 400 kg are available to suit diverse requirements.
• Clean Environment (Optional): Equipped with an optional exhaust filter to filter dust and gases, avoiding air pollution and ensuring a tidy workspace.
• Energy Saving (Optional): Features an optional hot air recovery unit that forms a semi-closed circulation loop. This speeds up hot air circulation, minimizes heat loss, and saves 15%~30% in power consumption.
功能
Construction & Material
- Full Stainless Steel Contact: All raw material contact surfaces feature a full stainless steel construction, ensuring materials remain free from contamination.
- Precision-Cast Aluminum Housing: The exterior features a precision-cast aluminum shell with a smooth surface, offering excellent thermal insulation.
- Detachable Design: The barrel and hopper adopt a detachable design, making it easy to clean and change materials.
Drying Performance
- High-Efficiency Hot Air Diffuser: Equipped with a high-performance hot air diffuser that evenly disperses heat, maintaining uniform drying temperatures and increasing drying efficiency.
- Dust-Isolating Quiet Blower: Features a low-noise blower that isolates dust, ensuring raw materials are not contaminated.
- U-Shaped Heating Element: Designed with a U-shaped (bent) heating element to prevent material from falling into the tube and causing damage to the heater.
Safety & Maintenance
- Safety Protection: Equipped with over-temperature, overload, and other safety protection devices.
- Sight Glass: The hopper base is designed with a sight glass for direct observation of internal operation.
- Easy Loader Installation: Comes with a material inlet cover for easy vacuum loader installation.
Optional Equipment
Magnetic Base
Hopper Magnet
Hot Air Recovery Filter
Exhaust Air Filter
Loader Adapter
Floor Stand
产品结构图
规格表
| Model | DB-12KG | DB-25KG | DB-50KG | DB-75KG | DB-100KG | DB-150KG | DB-200KG | DB-300KG | DB-400KG | DB-500KG | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hopper Capacity | KG | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 |
| Blower Power | W | 135 | 145 | 155 | 155 | 215 | 215 | 320 | 320 | 340 | 340 |
| Heater Power | KW | 2 | 3.9 | 5.1 | 5.7 | 10.8 | 10.8 | 15 | 15 | 19 | 19 |
| Drying Temperature | °C | 130°C | |||||||||
| Power Supply | V | 220VAC1P/PE 50HZ | 220VAC1P/PE 50HZ | 380VAC 3P/PE 50HZ | |||||||
| Total Power | KW | 2.2 | 4.2 | 5.3 | 5.9 | 11.2 | 11.2 | 15.4 | 15.4 | 19.4 | 19.4 |
| L(mm) | 690 | 800 | 880 | 930 | 1050 | 1070 | 1240 | 1300 | 1450 | 1450 | |
| Dimensions (L×W×H) | W(mm) | 430 | 435 | 510 | 530 | 650 | 690 | 780 | 835 | 900 | 900 |
| H(mm) | 700 | 960 | 1140 | 1250 | 1310 | 1505 | 1590 | 1860 | 1867 | 2067 | |
| Weight | KG | 21 | 34 | 38 | 46 | 59 | 85 | 114 | 140 | 170 | 220 |
