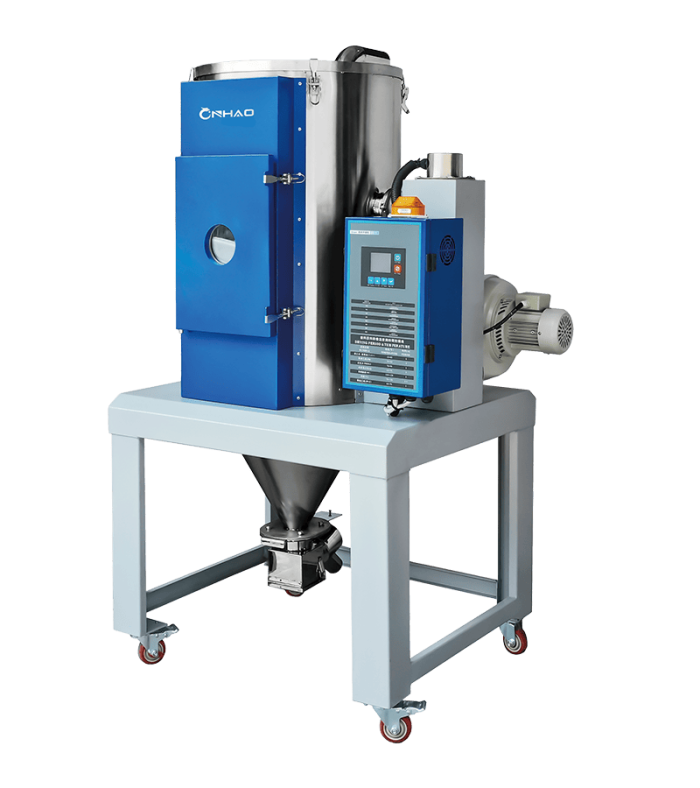

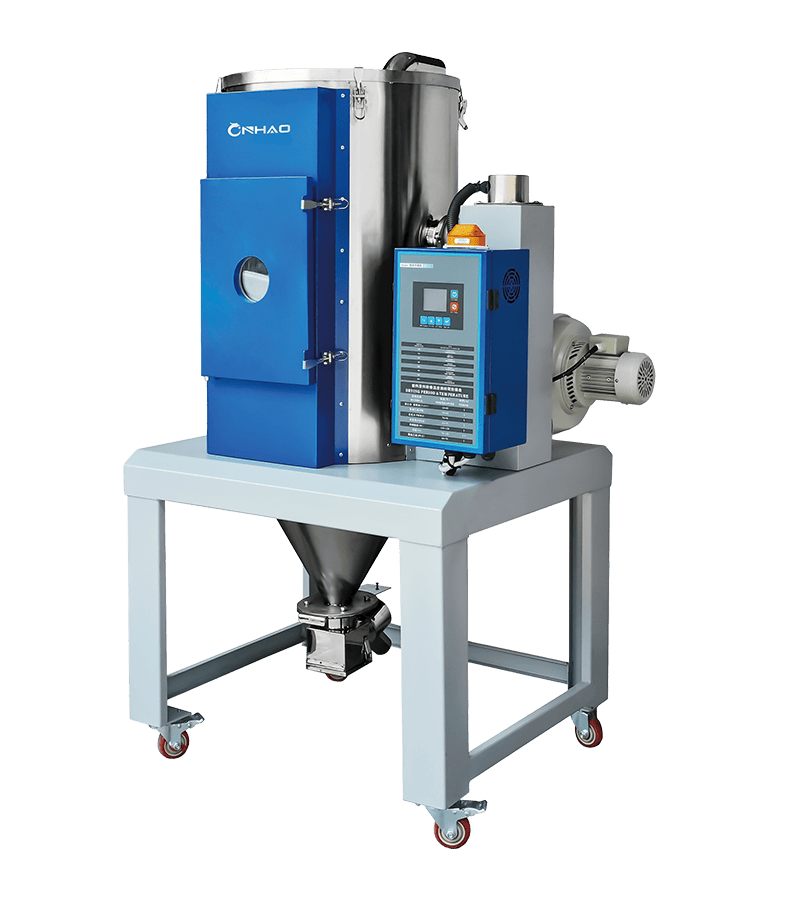

Industrial Euro Dryer
Designed with a seamless one-piece body, the Industrial Euro Dryer boasts a specially polished interior and exterior drum surface. By adopting “down-blowing hot air” and “cyclonic exhaust” technology, it delivers evenly and consistently dried results every time. Its full stainless-steel construction ensures your raw materials are never contaminated.
Description
FEATURES
Construction & Material
- Constructed with double-layer stainless steel for excellent thermal insulation and energy saving.
- Equipped with a material inlet cover for easy loader installation.
- Hopper and base designed with a sight glass for direct observation of internal operation.
Drying Performance
- Utilizes “downward hot air blowing” and “cyclonic air exhaust” principles to ensure uniform and consistent drying results.
Safety Protection
- Adjustable overheat safety protection device.
- Features over-temperature, overload, and other safety protection devices.
Electrical & Control
- Standard external insulated main power supply.
- All models equipped with a timer.

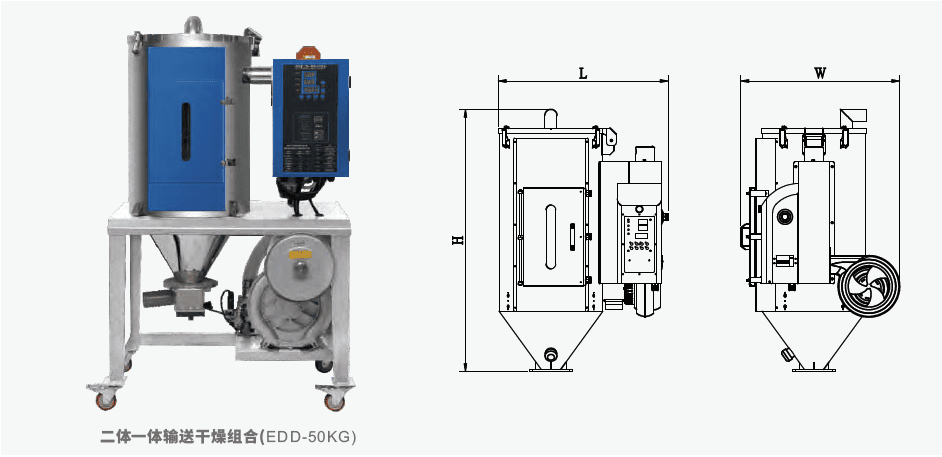

Product Structure Diagram
Specification Sheet
| Modol | ED-4KG | ED-6KG | ED-12KG | ED-25KG | ED-50KG | ED-75KG | ED-100KG | ED-150KG | ED-200KG | ED-300KG | ED-400KG | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hopper Capacity | KG | 4 | 6 | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 |
| Blower Power | KW | 0.135 | 0.135 | 0.135 | 0.135 | 0.17 | 0.2 | 0.2 | 0.35 | 0.35 | 0.45 | 0.45 |
| Heater Power | KW | 2 | 2 | 2 | 3 | 3.9 | 6.0 | 7.0 | 9.0 | 11.0 | 18.0 | 20.0 |
| Drying Temp. | °C | 150°C -200°C | ||||||||||
| Outlet Diameter | mm | 51 | 51 | 51 | 63 | 63 | 63 | 63 | 76 | 76 | 76 | 76 |
| Power Supply | V | 220VAC | 220VAC | 380VAC | ||||||||
| L(mm) | 450 | 460 | 520 | 730 | 840 | 820 | 820 | 960 | 1110 | 1270 | 1280 | |
| Dimensions (L×W×H) | W(mm) | 460 | 440 | 580 | 430 | 550 | 750 | 750 | 770 | 820 | 980 | 1000 |
| H(mm) | 580 | 850 | 760 | 1070 | 1260 | 1280 | 1510 | 1860 | 2000 | 2310 | 2330 | |
| Weight | KG | 16.5 | 21 | 22 | 47 | 55 | 69 | 100 | 140 | 165 | 195 | 230 |
| Modol | ED-500KG | ED-600KG | ED-800KG | ED-1000KG | ED-1200KG | ED-1500KG | ED-2000KG | ED-3000KG | ED-4000KG | ED-5000KG | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hopper Capacity | KG | 500 | 600 | 800 | 1000 | 1200 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Blower Power | KW | 1.03 | 1.03 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Heater Power | KW | 22 | 24 | 30 | 36 | 40 | 45 | 45 | 50 | 55 | 60 |
| Drying Temp. | °C | 150°C -200°C | |||||||||
| Outlet Diameter | mm | 89 | 89 | 102 | 129 | 159 | 159 | 159 | 175 | 175 | 219 |
| Power Supply | V | 380VAC | |||||||||
| L(mm) | 1420 | 1500 | 1500 | 1620 | 1600 | 1740 | 1910 | 2082 | 2190 | 2360 | |
| Dimensions (L×W×H) | W(mm) | 1050 | 1020 | 1120 | 1220 | 1330 | 1410 | 1530 | 1920 | 2040 | 2160 |
| H(mm) | 2350 | 2500 | 2750 | 3200 | 3250 | 3500 | 4100 | 4520 | 4940 | 5100 | |
| Weight | KG | 255 | 280 | 430 | 510 | 630 | 760 | 1000 | 1400 | 1900 | 2500 |
