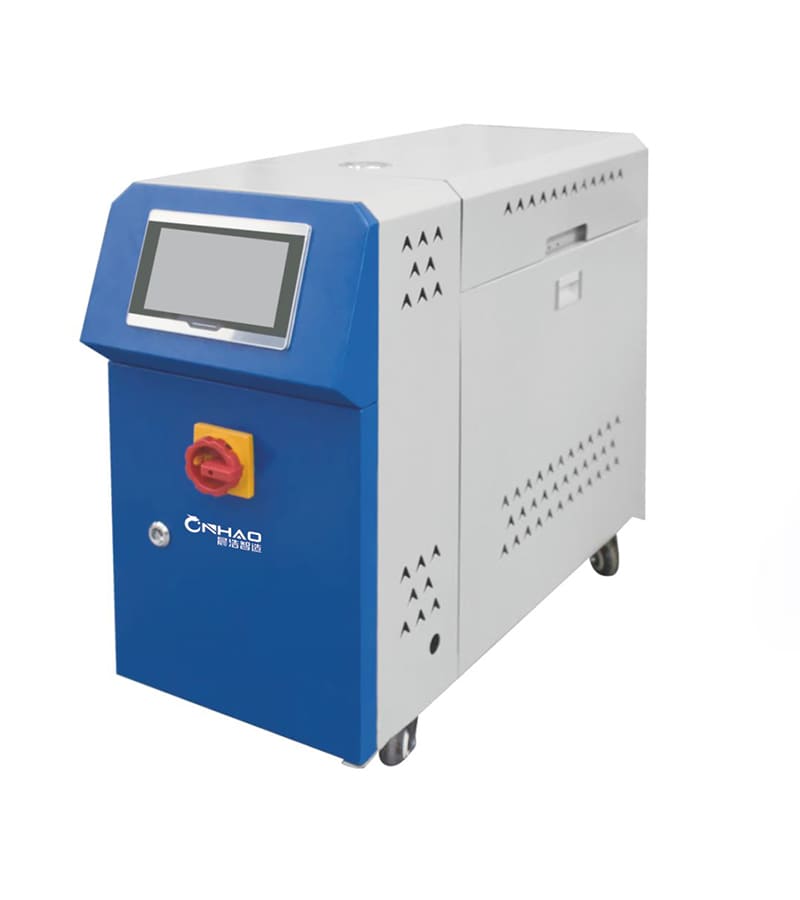

Water Temperature Control Unit
Water Type Mold Temperature Controllers use water as heating media to realizeheat exchange by direct cooling for standard temperature control from 120~180℃Water type has its superiorities with high efficient heat transmission, less pollutionwater resource easy to be attained with low cost.
Description
FEATURES
- P.l.D multi-stage temperature control system cansave power up to 35% thanks to control temperature accurately & reasonably.
- Perfect safety protection and error indicationdisplay which are easymaintained and repaired,even without professionals can do it.
- lmported hi-class parts with long service life.
- Rapid heating and cool down speeds leadtemperature to be kept precisely and stably withaccuracy up to ±0.1
- Unique heating design are suitable to different temperature control application with excellent &distinct power saving.
- 304 stainless steel integrated pipelines with lesspipe resistance and even heating for long service life.
- Automatic air-exhausting function after startup.
Safety Protection and Indication System
Safty Protection and Indiction System
Power lack-phase protection
Power supply protection and indicating lamp
Pumpreverse protection and indicating lamp
Pump overload protection and indicating lamp
Water shortage protection and indicating lamp
Overheat protection and indicating lamp
Hot water by-pass pressure release loop
Forced cooling
Abnormal temperature alarm
Abnormal alarm buzzer
Specification Sheet
| Model | TW06 | TW09 | TW12 | TW18 | TW24 | TWH09 | TWH12 | |
|---|---|---|---|---|---|---|---|---|
| Max Temperature | °C | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Cool Mode | Direct Cool | Direct Cool | Direct Cool | Direct Cool | Direct Cool | Indirect Cool | Indirect Cool | |
| Thermal Media | Clean Water | Clean Water | Clean Water | Clean Water | Clean Water | |||
| Heater Capacity | KW | 6 | 9 | 12 | 18 | 24 | 9 | 12 |
| Pump Power | KW | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 | 1.1 | 1.5 |
| Pump Max.Flow | L/min | 35 | 50 | 110 | 250 | 320 | 42 | 74 |
| Pump Max.Pressure | bar | 3 | 3.5 | 4 | 7 | 9 | 5.0 | 6.2 |
| Inlet/Outlet Pipe(Splitter) | inch | 3/8‘’ | 3/8‘’ | 3/8‘’ | 1‘’ | 1‘’ | 3/8‘’ | 3/8‘’ |
| Inlet/Outlet Pipe(Splitter) | 4-in/4-out | 4-in/4-out | 4-in/4-out | 1-in/1-out | 1-in/1-out | 4-in/4-out | 4-in/4-out | |
| NO. Of Heat-Bubbles | 35 | 50 | 110 | 250 | 320 | 42 | 74 | |
| Heat-Bubble Capacity | L | 3 | 3.5 | 4 | 7 | 9 | 5.0 | 6.2 |
| Dimensions-LxWxH | CM | 65X30x80 | 65X30x80 | 65X30x80 | 90X30x80 | 90X30x80 | 76.5X32x76.5 | 79.5X32x82 |
| Weight | KG | 65 | 75 | 85 | 110 | 165 | 85 | 95 |
