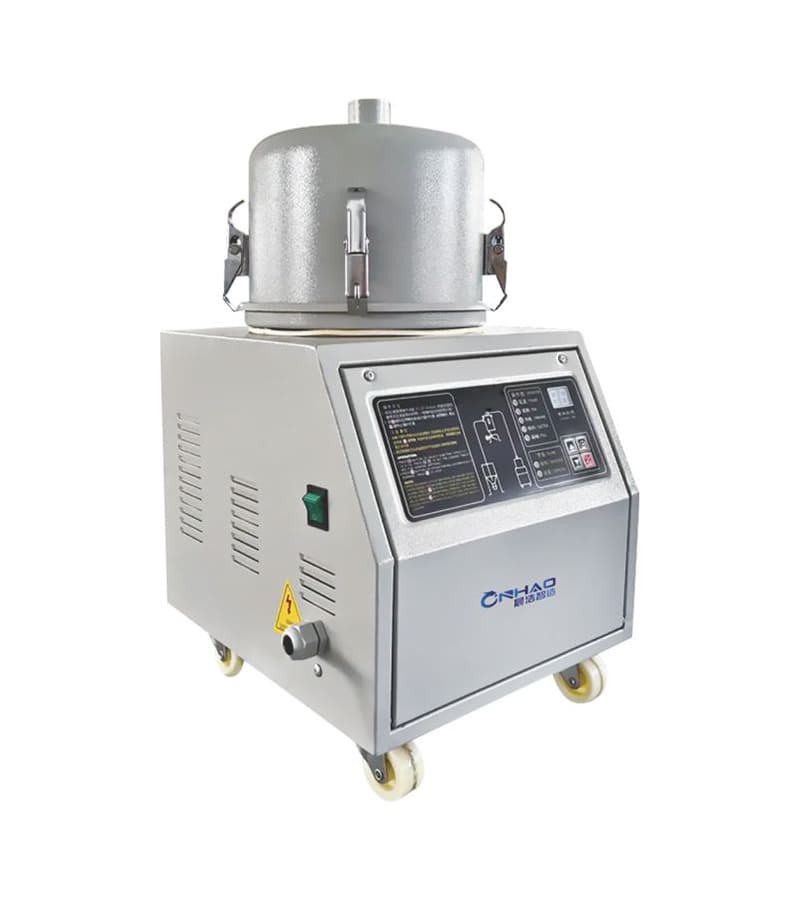

Separated-type Pneumatic Conveying System
The modular loader features a separated hopper-unit design, capable of integrating with up to 2 hoppers for one-to-multiple material transfer. This configuration substantially enhances material handling capacity, achieving a throughput of 700 kg/h. With a maximum vertical lift height of 10 meters, it excels in long-distance conveying applications. Engineered for intuitive operation, this system delivers tailored performance to meet diverse customer demands.
Description
FEATURES
- The main controllers and material hopper receivers are designed separately for satisfyingwith customers’ requirements on the longdistance conveying material.
- Microprocessor controls features with easy operation,accurate control and multiple alarm indicators.

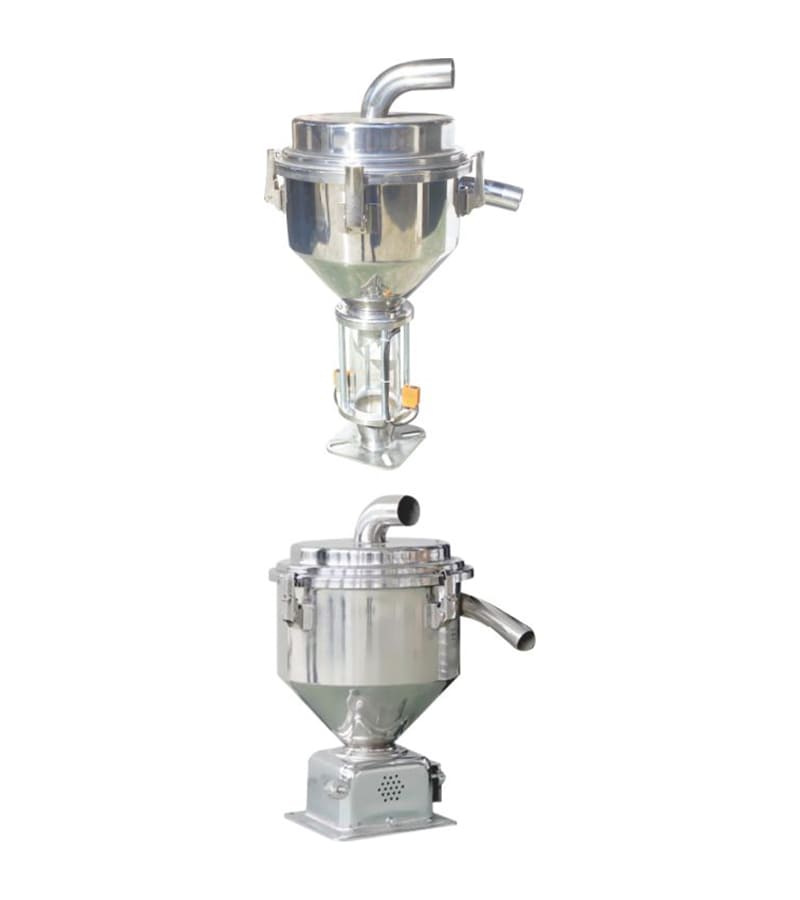

- Various hopper receivers are available for selection to meet different requirements.
- Audible material shortage alarm for reminding customers in to solve faulty.
- Motor overload protection device ensures its long service life.
- Independent filter device is easy for cleaning.
- Cyclone dust separator is available as option to reduce cleaning filter time which is specially suitable for regrind material conveying.
- Proportional valve is available as option which is used for mixing virgin and regrind material and instant recycle regrind material.

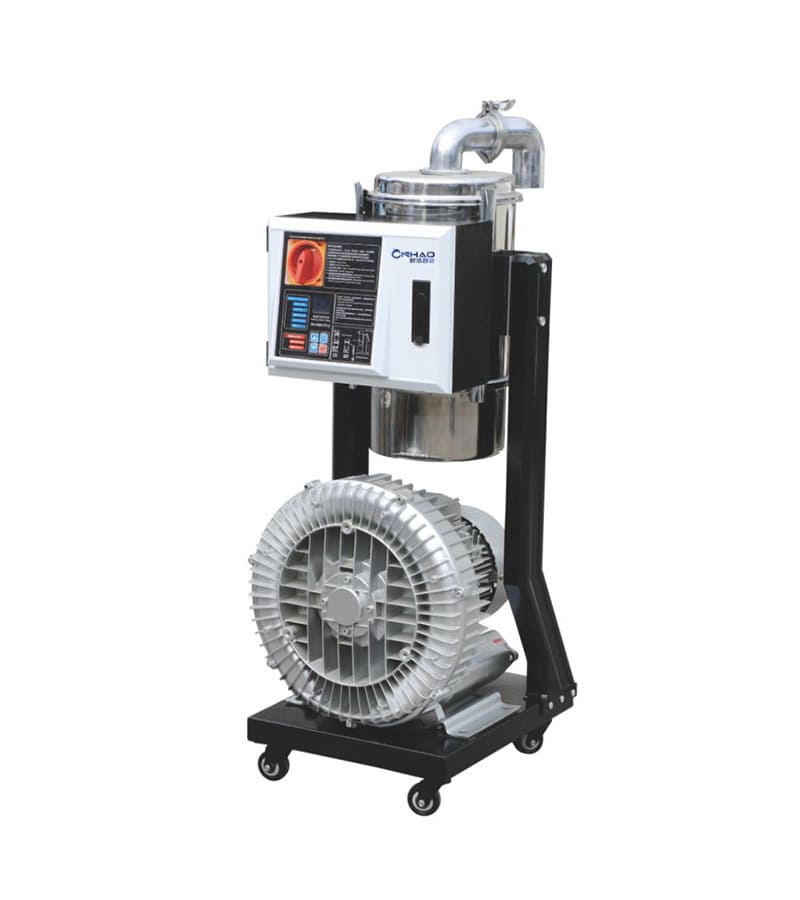

Dual-Station Material Loader Features
- One machine drives two machines, saving equipment configuration and space.
- Computer control makes operation, installation, and debugging convenient.
- Especially suitable for drying and feeding two machines in one, simplifying the system structure, improving efficiency, and facilitating operation.
- Maintenance and repair are convenient and quick.
Product Structure Diagram

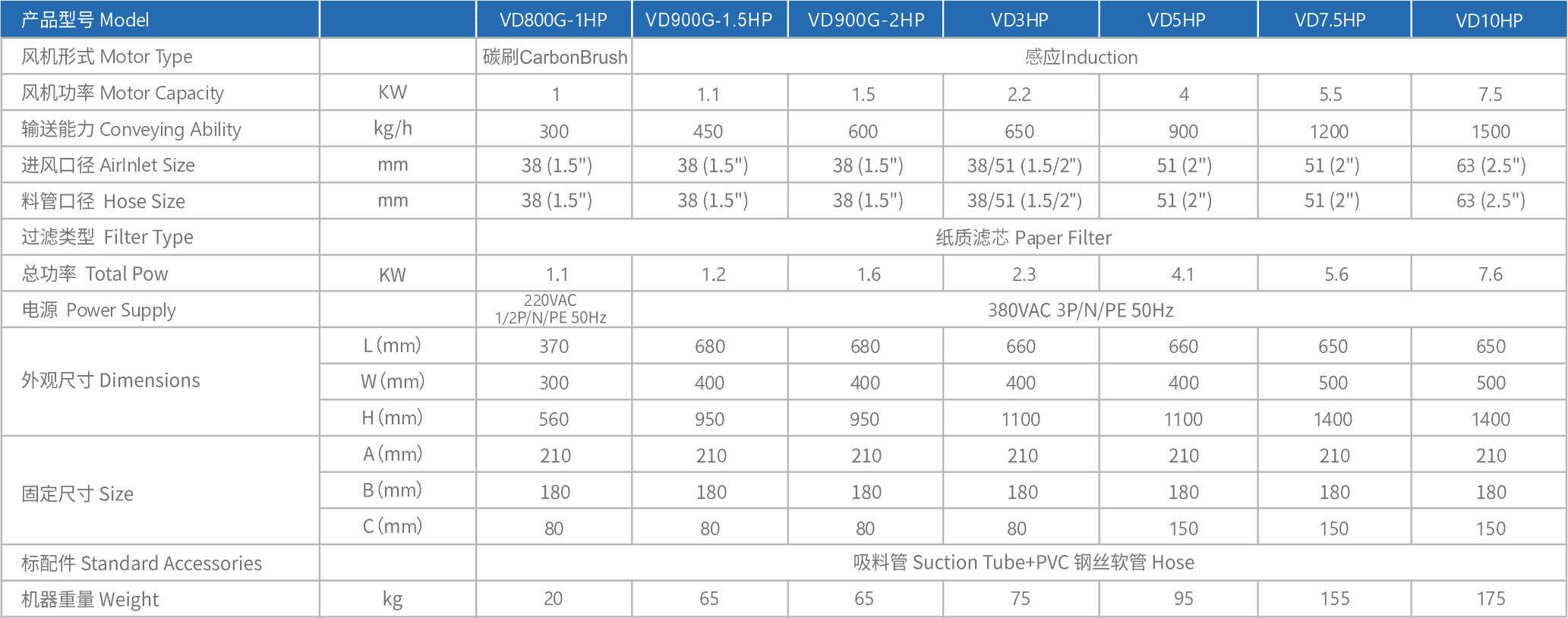

Specification Sheet
