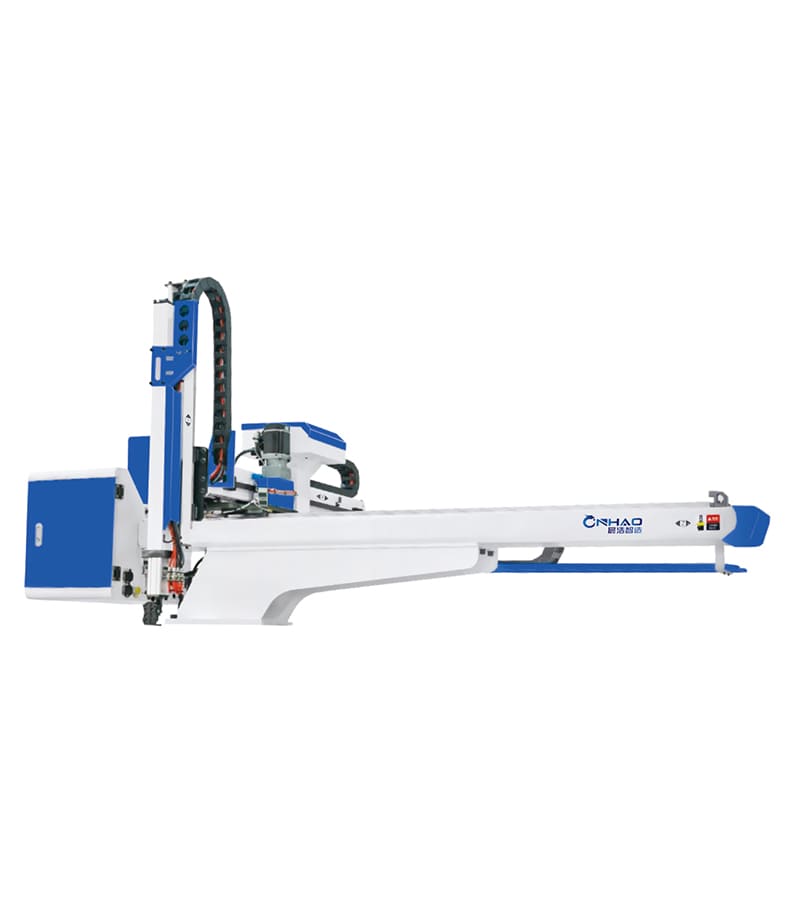

Bullhead Manipulator
Bullhead robotic arm is an injection molding robotic arm specifically designed to handle larger, heavier, or more complex shaped plastic products. It is commonly used in industries such as automotive parts, home appliance casings, office furniture, industrial containers, outdoor leisure products, and building materials
Beschrijving
VESTIBULUM TEMPUS METUS
- Three axis cow head single arm double joint robotic arm.
- All axes are driven by full AC servo motors.
- Heavy duty steel beam structure, safe and stable.
- Choose heavy-duty linear guides and sliders.
- Single arm maximum load 25KG (including fixture), 90° lateral posture.
Specification Sheet
| Model | T1500 | T1700 | T1900 | T2200 |
|---|---|---|---|---|
| Power | 220VAC 1/2P/N/PE 50Hz | 220VAC 1/2P/N/PE 50Hz | 220VAC 1/2P/N/PE 50Hz | 220VAC 1/2P/N/PE 50Hz |
| Air Pressure（bar） | 5~7 | 5~7 | 5~7 | 5~7 |
| Applicable Models | 500T~1000T | 800T~1500T | 1000T~2000T | 1500T~2800T |
| Up-down Distance(mm) | 1500 | 1700 | 1900 | 2200 |
| Pull Distance(mm) | 1400 | 1400 | 1600 | 1800 |
| Horizontal Distance(mm) | 2200 | 2550 | 2700 | 3000 |
| Extraction And Cycle Time(Sec) | 4.2/15 | 5.2/18 | 10/27 | 12.5/31 |
| Weight(KG) | 540 | 566 | 1068 | 1100 |
