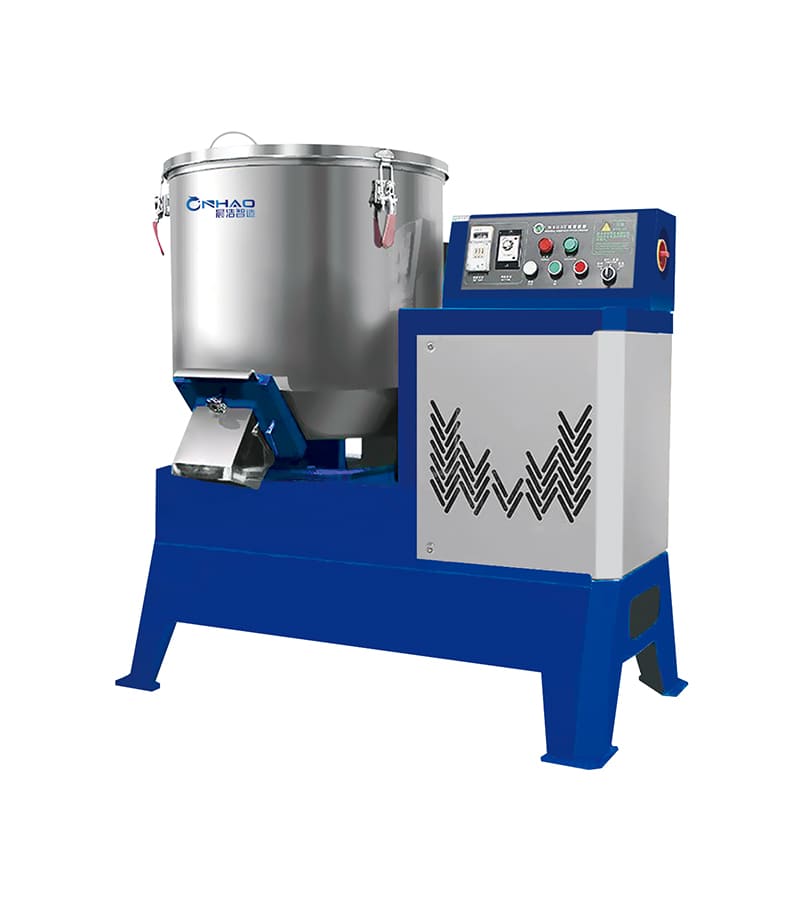

Dry Color Mixing Machine
The drying mixer uses double-layer stirring blades to make the material roll up and dow ninside and out, forming effective convective mixing. Mainly used for plastic color mixing, itutilizes the high-speed operation of the feeding blade to quickly evaporate plastic particles (or resin powder) through the exhaust pipe, resulting in dry rolling, collision,and heat generation. This not only makes the material wet during color mixing, but also achieves ideal drying effect.
カテゴリー: 投与とブレンド
説明
FEATURES
- The material bucket is made of imported stainless steel material, with a smooth surface and easy
cleaning. - Sealed chamber mixing and double-layer insulation device.
- Integrating temperature and time control, convenient for setting various parameters.
- The hood is equipped with a protective switch, ensuring safe and reliable operation.
- Motor overload protection.
Specification Sheet
| Model | QD50 | QD100 | QD200 |
|---|---|---|---|
| Mixing Capacity (KG) | 50 | 100 | 200 |
| Motor Power(KW) | 7.5 | 15 | 30 |
| Rotational Speed(r/min) | 480 | 480 | 400 |
| Power | 380VAC 3P/N/PE 50Hz | ||
| Dimensions(m) | 1.2x0.85x1.3 | 1.35x0.98x1.55 | 1.75x1.2x170 |
| Weights(KG) | 230 | 270 | 700 |
