מערכת טעינה משולבת עם יניקה

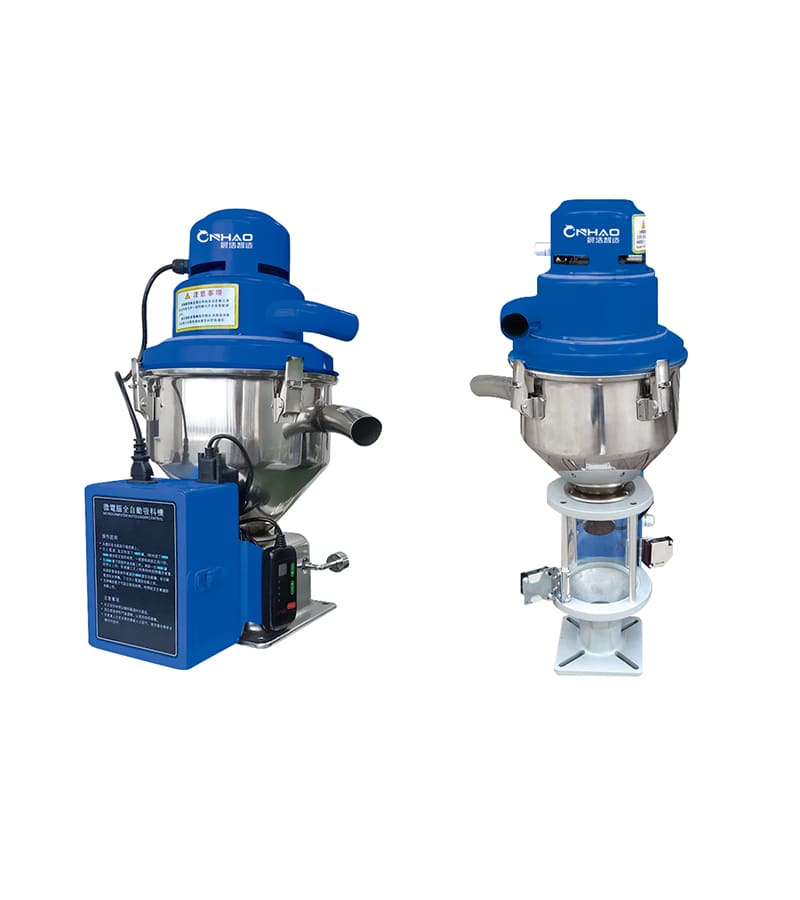

Integrated Material Loaders are primarily used for direct rapid conveying of free-flowing virgin materials (primary) or recycled pellets to injection molding machines. Their hinged vacuum motor cover enables quick cleaning and simplified maintenance.
During preset loading cycles, the single-phase vacuum motor with non-return baffle gate generates vacuum airflow. This transports plastic granules through the material suction hose into the loading chamber. The material then gravity-discharges directly into the injection molding machine’s feed hopper.
This cyclic suction process continues automatically until both the molding machine hopper and loader chamber trigger their hopper full detectors.
FEATURES
- Stainless steel construction for ensuring material free from contamination.
- Motor overload protection device ensures its long service life.
- The adoption of Cloth mesh fiter and stainless screener for double filtration protection to filter dust and motor reverse cleaning function.
- Mechanical stainless flap is fitted which don’t needto be adjusted according to different material.
- Auto-cleaning function
- Autoloaders equip with photo sensors which are mounted onto the feeding port of injection molding machines; autoloaders equip with proximity switch which are mounted onto the hopper dryers.
Reliable Performance
The digital setting and display functions for the material loader’s suction duration, conveying sequence, and operational mode selection are microprocessor-controlled. The system features automatic fault diagnostics with audible/visual alarms. All models are constructed with premium stainless steel components and manufactured to rigorous industrial standards, ensuring uncompromising performance reliability and operational stability.

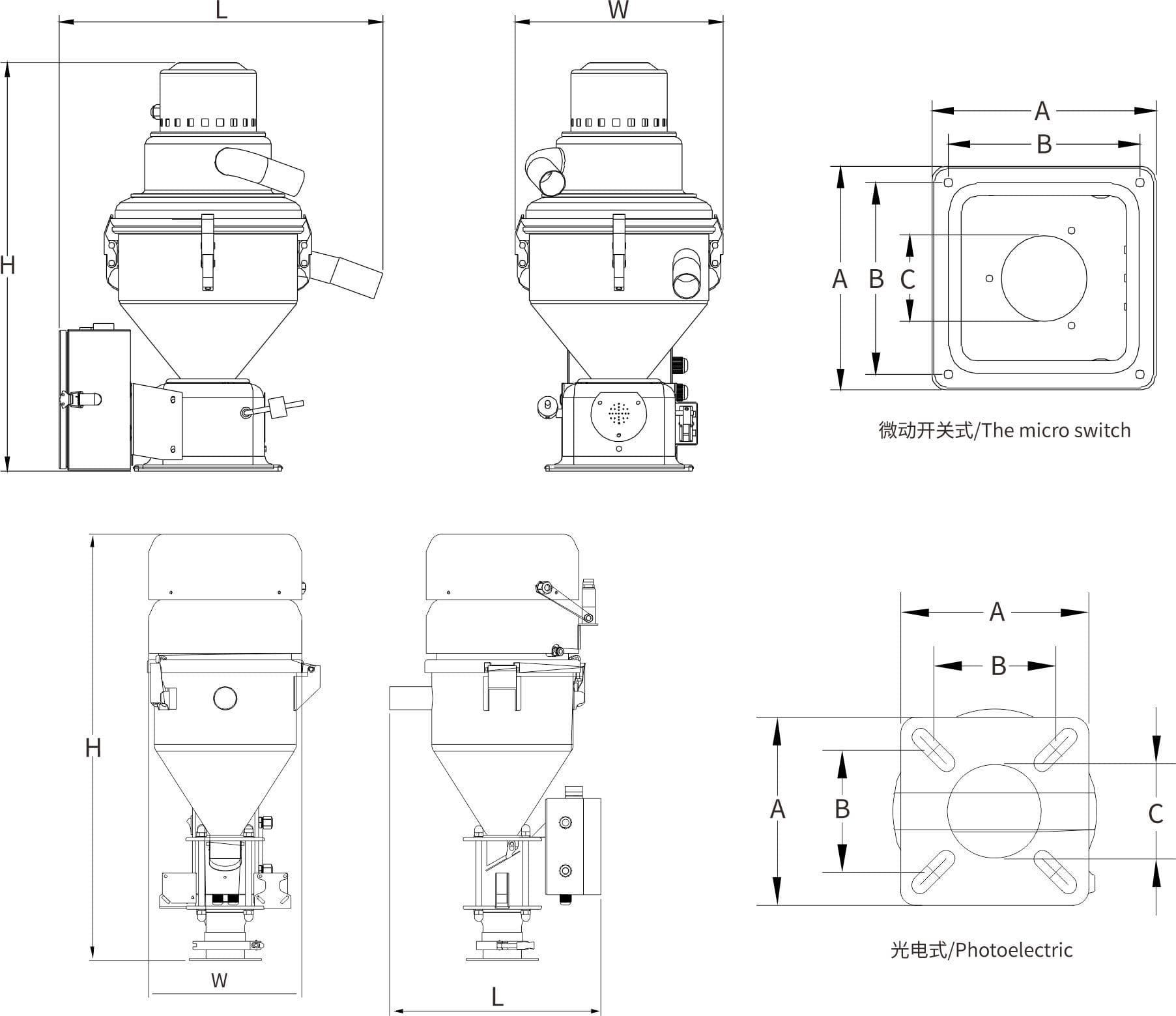

Product Structure Diagram

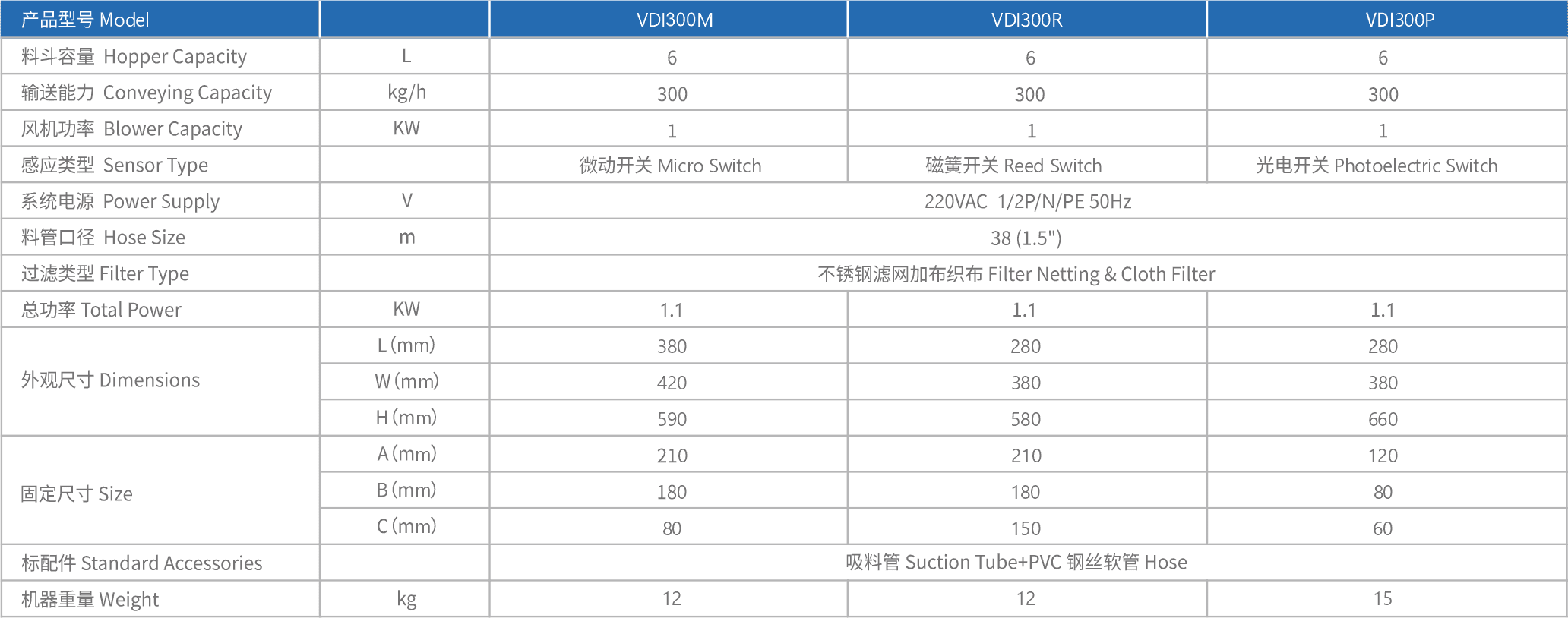

Specification Sheet
